50X - 1250X Magnifications Metallurgical Microscope 4 / 0.1 Achromatic Objective

Product Categories
Shenzhen Pride Instrument Inc.
Contact Now

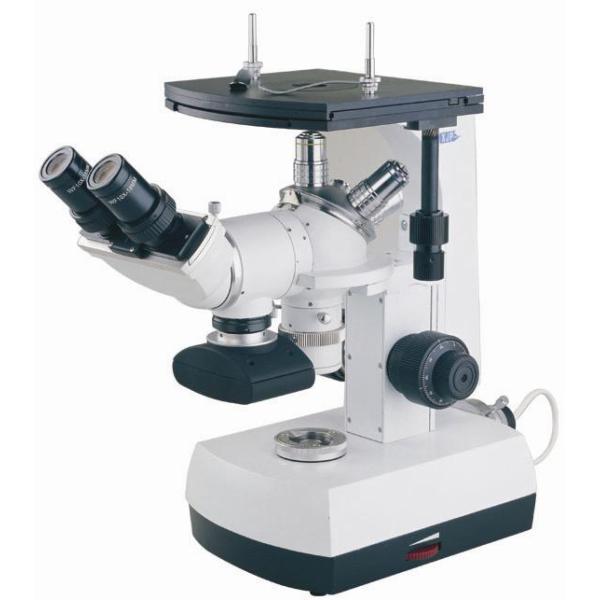

50X - 1250X Magnifications Metallurgical Microscope 4 / 0.1 Achromatic Objective

Brand Name : Pride

Model Number : XJP-15

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 10-15 work days

Packaging Details : wooden case

Achromatic objective : 4/0.1

magnifications : 50X-1250X

Achromatic objectives : 10/0.25 100/1.25 (Oil)

Eyepiece : H5X

Wild-field eyepieces : WF10X WF12.5X

Reticule eyepiece : WF10X (0.1mm/division)

Type : Metallographic

Usage : Research

Contact Now

50X-1250X magnifications Binocular Metallurgical Microscope

Total magnifications:  50X-1250X
Achromatic objectives:  10/0.25 100/1.25 (Oil)
Semi-plan achromatic objective:   SP40/0.65
Eyepiece:  H5X
Wild-field eyepieces:  WF10X WF12.5X
Reticule eyepiece:  WF10X (0.1mm/division)

Optional accessories
1) Micrometer  (0.01mm/division)
2) Plan achromatic objectives:  PL2.5/0.07 PL20/0.35
3) Achromatic objective:  4/0.1



 Order No.DescriptionsXJP-15AXJP-15BXJP-15CXJP-15D
 4J.2Main body√√√√
 4J.6Monocular head (45°)√√
 12X.4Binocular head (45°)  √√
 8306Mechanical stage (with a stroke of 28 by
30 and size of 180 by 165)		√√√√
 4J.0-1Stage plate ( ¢ 10)√√√√
 4J.0-4Stage plate ( ¢ 15)√√√√
 12X.3-5Stage plate ( ¢ 20)√√√√
 EH5Huyenian ocular (5X-20)√√√√√√
 EP 10aPlan eyepiece (10X-18)√√√√√√
 EP12.5Plan eyepiece (12.5X-14)√√√√√√
 EPr10bPlan reticle eyepiece (10X-14)√√√√
 B-OPr2.5Plan achromat objective (2.5/0.07)
 B-OAr4Achromat objective (4/0.10)
 B-OPr4Plan achromat objective (4/0.10)
 M-OAr10Achromat objective (10/0.25)√ √
 M-OSPr 40aS-plan achromat objective (40/0.65)√ √
 M-OAor100Achromat objective (100/1.25 oil)√ √
 M-OPr10Plan achromat objective (10/0.25) √ √
 M-OPr40Plan achromat objective (40/0.65) √ √
 M-OSpor100S-plan achromat objective (100/1.25 oil) √ √
  Colour filter ¢32(green,yellow,blue,grey) √ √
 4J.0-2Gross glass ¢ 32√√√√
 LYQ6-15DHALOGEN LAMP 6V15W√√√√
 LS09Light source unit√√√√
 3X-2Transformer√√√√
 CL02Clamps√ √√ √√ √√ √
  Stage micrometer (division 0.01mm )
 SC03Sample holder




































50X - 1250X Magnifications Metallurgical Microscope 4 / 0.1 Achromatic Objective
